| Specification | Model | |||||

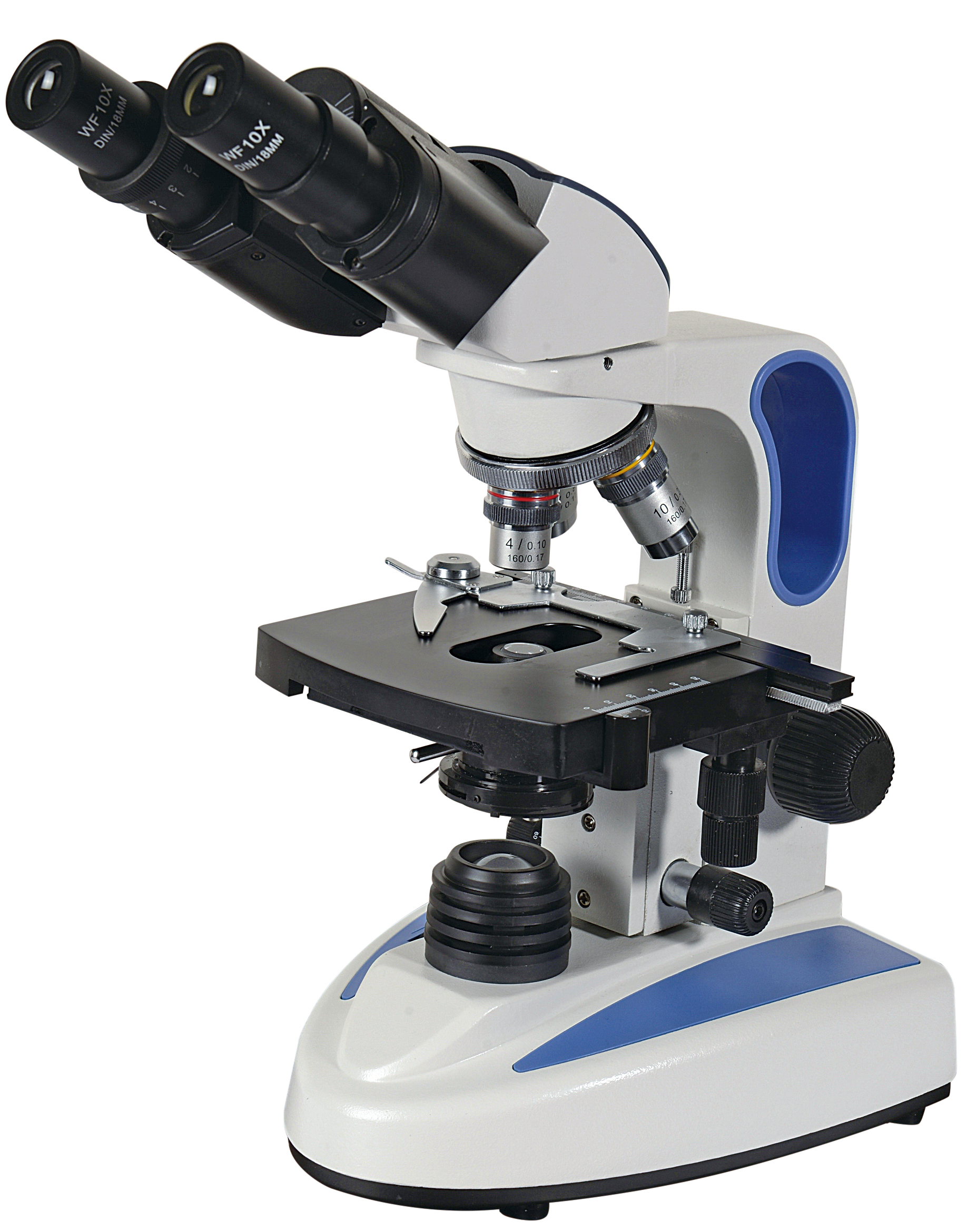

| XSP-179 | XSP-179A | XSP-179B | XSP-179C | XSP-179T | ||
| Viewing Head | Monocular head,inclined at 45 °， 360° rotatable | ● | ● | ● | ||
| Compensation free binocular head,inclined at30°(48mm- 75mm) | ● | |||||
| Compensation free binocular head,inclined at30°(48mm- 75mm) | ● | |||||
| Eyepiece | WF10×/18mm | ● | ● | ● | ● | ● |
| Objective | Achromatic objective:4×、10×、40×(s) | ● | ● | |||
| Achromatic objective:4×、10×、40×(s)、100×(s)Oil | ● | ● | ● | |||
| Stage | Plain stage with slide clips
Stage Size：120mmX125mm |
● | ● | |||
| Double layer mechanical stage
Stage Size：135mmX135mm Moving Range：70mm×50mm |
● | ● | ● | |||
| Condenser | 0.65 Condenser with disc diaphragm | ● | ||||
| 0.65 Condenser with iris diaphragm | ● | |||||
| N.A.1.25 Abbe condenser with iris diaphragm and filter holder | ● | ● | ● | |||
| Focusing | Separated coarse & fine focusing adjustment | ● | ● | ● | ● | ● |
| Light Source | LED,brightness adjustable | ● | ● | ● | ● | ● |
| Optional Accessory | Eyepiece：WF16×、WF20×、P16×
Achromatic objective：20×（s）、60×(s) Reflector、Dual viewing head |
|||||
