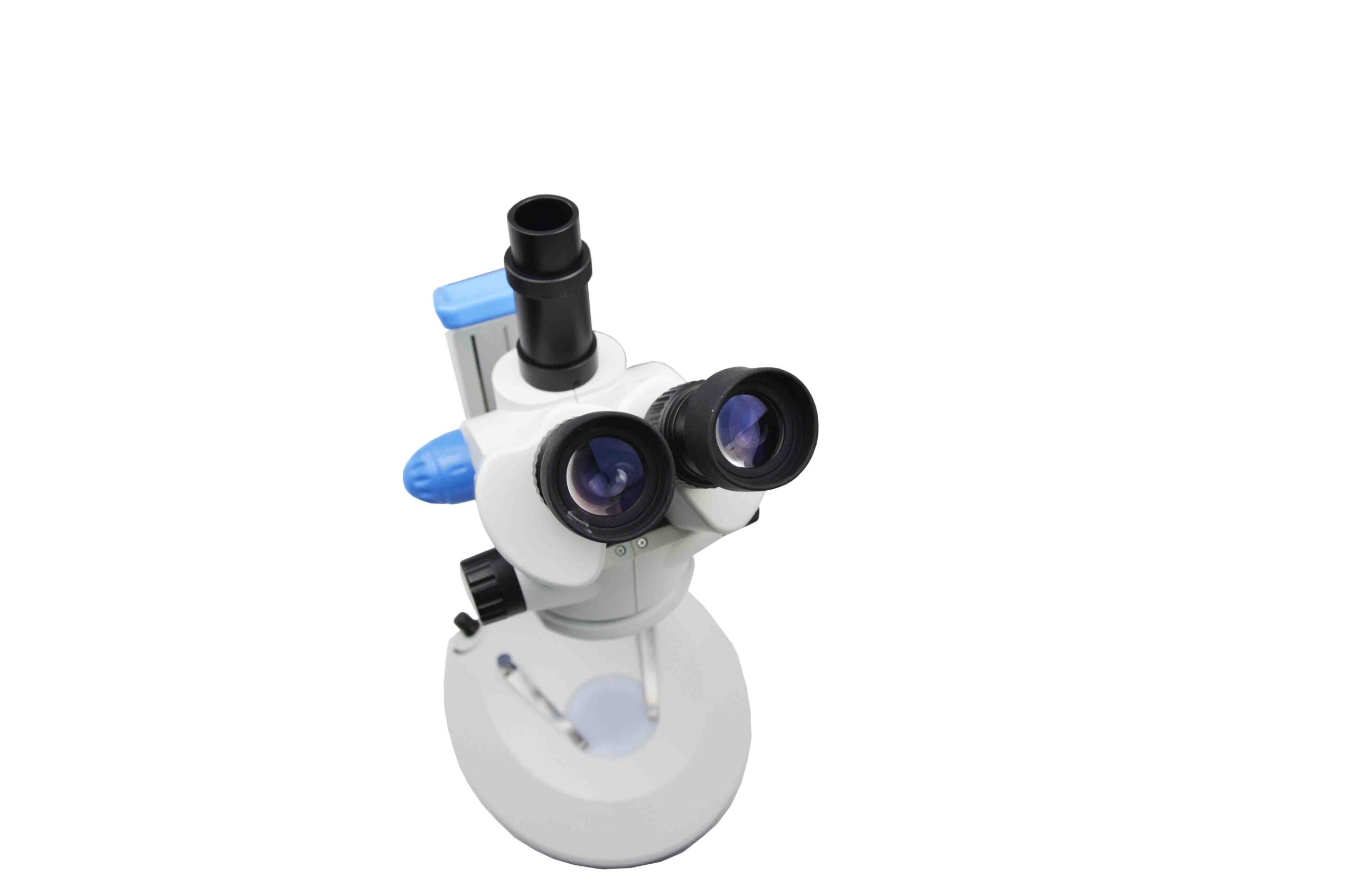

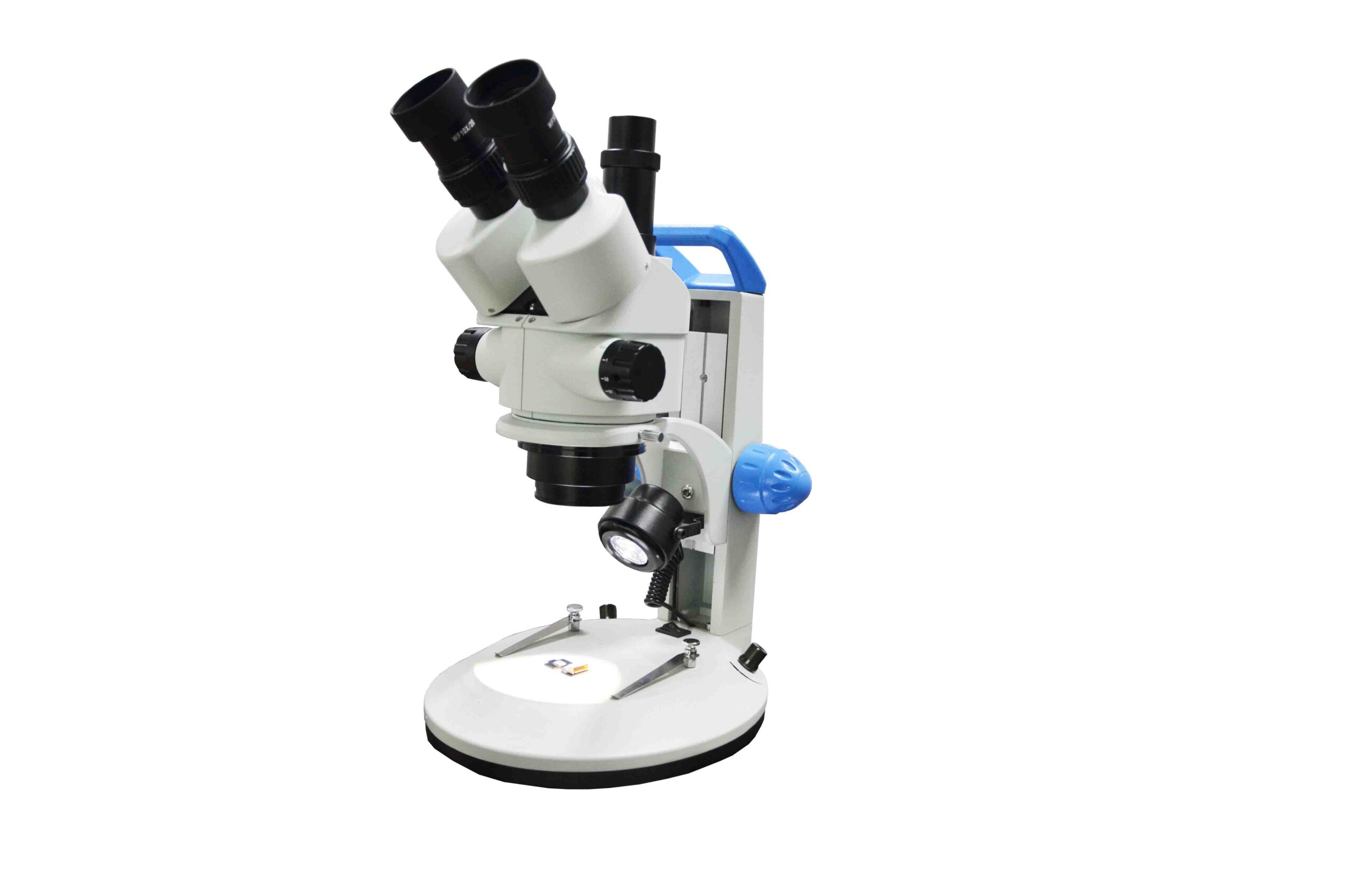

Student Stereo Microscope for electronics repair Triocular microscopy
| Eyepiece | Standard | Auxiliary Lens 0.5X | Auxiliary Lens 1.5X | Auxiliary Lens 2X | ||||
| W.D. 100mm | W.D. 165mm | W.D. 45mm | W.D. 30mm | |||||
| Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
| 10X/20mm | 7.0X | 28.6mm | 3.5X | 57.1mm | 10.5X | 19mm | 14.0X | 14.3mm |
| 45.0X | 4.4mm | 22.5X | 8.9mm | 67.5X | 3mm | 90.0X | 2.2mm | |
| 15X/15mm | 10.5X | 21.1mm | 5.25X | 42.8mm | 15.75X | 14.3mm | 21.0X | 10.7mm |
| 67.5X | 3.3mm | 33.75X | 6.7mm | 101.25X | 2.2mm | 135.0X | 1.7mm | |
| 20X/10mm | 14.0X | 14.3mm | 7.0X | 28.6mm | 21.0X | 9.5mm | 28.0X | 7.1mm |
| 90.0X | 2.2mm | 45.0X | 4.4mm | 135.0X | 1.5mm | 180.0X | 1.1mm | |
| 25X/9mm | 17.5X | 12.9mm | 8.85X | 25.4mm | 26.2X | 8.6mm | 35.0X | 6.4mm |
| 112.5X | 2.0mm | 56.3X | 4.0mm | 168.8X | 1.3mm | 225.0X | 1.0mm | |
| 30X/8mm | 21.0X | 11.4mm | 10.5X | 22.9mm | 31.5X | 7.6mm | 42.0X | 5.7mm |
| 135.0X | 1.8mm | 67.5X | 3.6mm | 202.5X | 1.2mm | 270.0X | 0.9mm | |
| Magnification | 7X-45X, 3.5X-270X with optional eyepieces and objectives | |||||||
| Eyepiece | WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
| Optional Eyepiece | WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm | |||||||
| Main Body | Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
| Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters | ||||||||
| Objective | 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1 | |||||||
| Aux Lens | 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X | |||||||
| Focusing Mount | Focusing track mount with vertical working distance 50mm | |||||||
| Illumination | Transmitted and reflected LED illumination with independent switches and adjustable intensity | |||||||
